8个信道干扰器
1.1 频率范围
CH 1: (650-800MHz)
CH 2: (800 – 1050MHz)
CH 3: (GPS/GLONASS/BeiDou) (1050-1340 MHz)
CH 4: (1560-1610 MHz)
CH 5: (2350 – 2550 MHz)
CH 6: (5100-5300 MHz)
CH 7: (5700-5950 MHz)
CH 8: (5950-6200 MHz)
1.2 技术参数
序号 | 客户提供产品参数 | Clients provided product parameters |

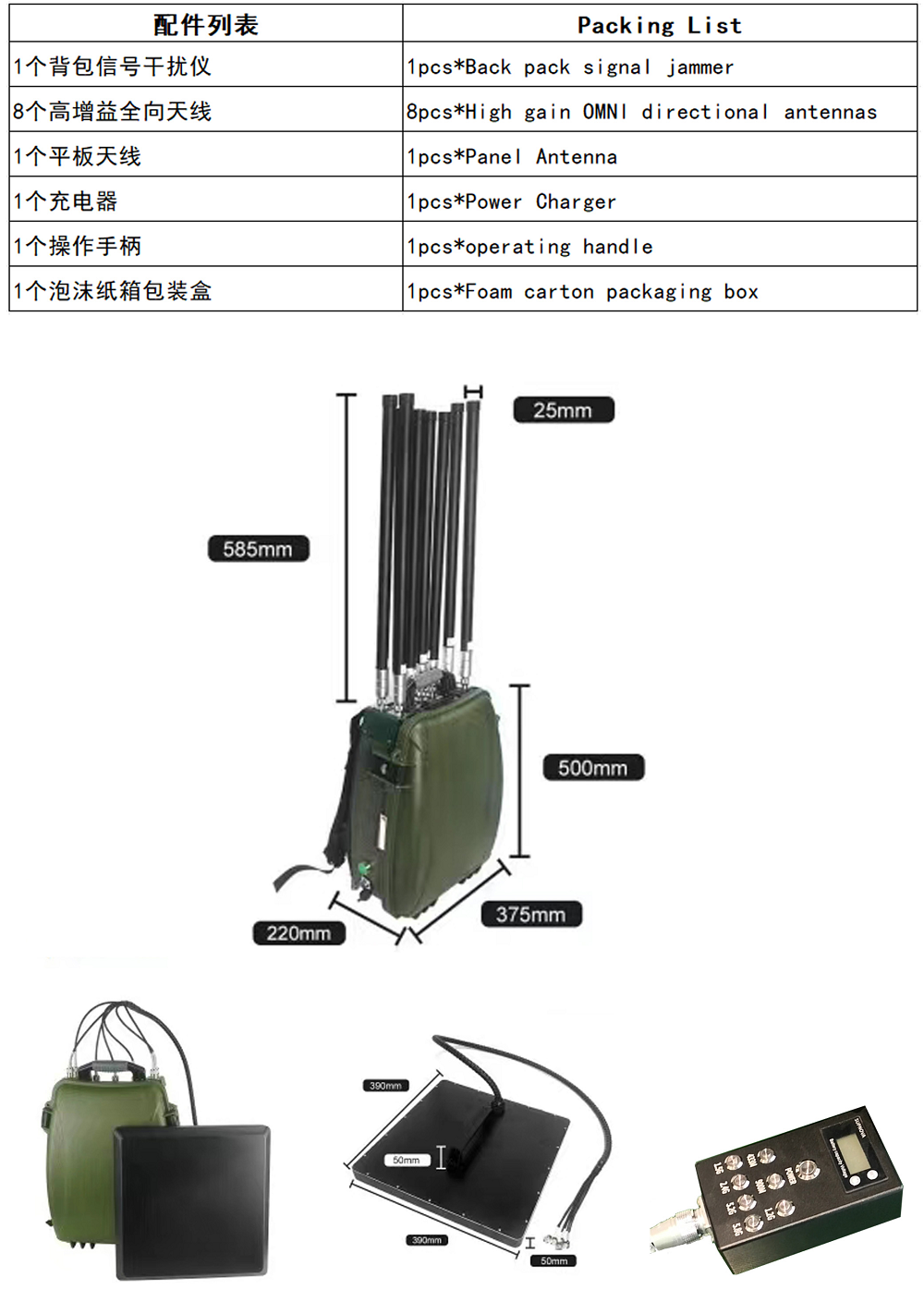

1 | 产品尺寸：375 / 220 / 500 mm | Product size: 375/220/500 mm |
2 | 重量： 21 kg | Weight: 21 kg |
3 | 总输出功率：最高320 W | Total output power: up to 320 W |
4 | 电源220 V | Power supply 220 V |
5 | 电源电压220 V AC 50 Hz | Power supply voltage 220 V AC 50 Hz |
6 | 充电电压24V/5A | Charging voltage 24V/5A |
7 | 内置电源24V 30000m/Ah | Built-in power supply 24V 30000m/Ah |
8 | 工作时间30分钟 - 1小时* | Working time is up to 30 minutes to 1 hour |
9 | 工作温度-20°C至+55°C | Operating temperature -20℃ to +55℃ |
